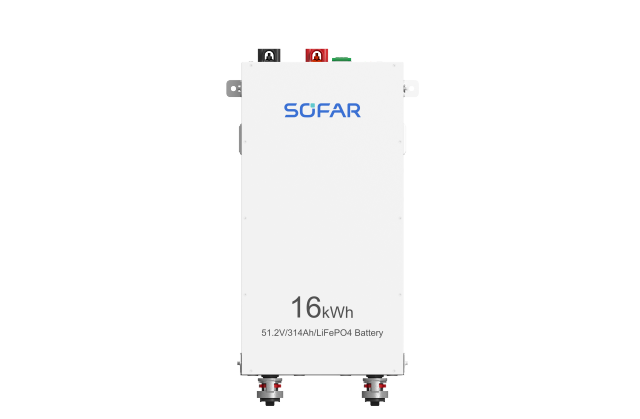

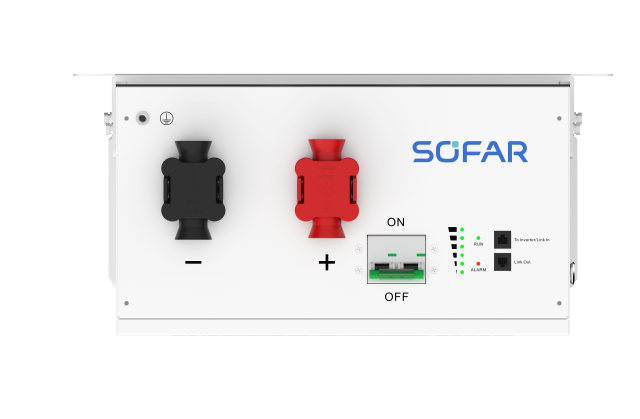

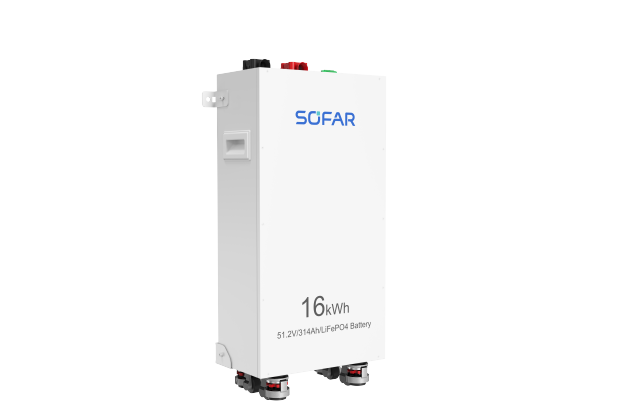

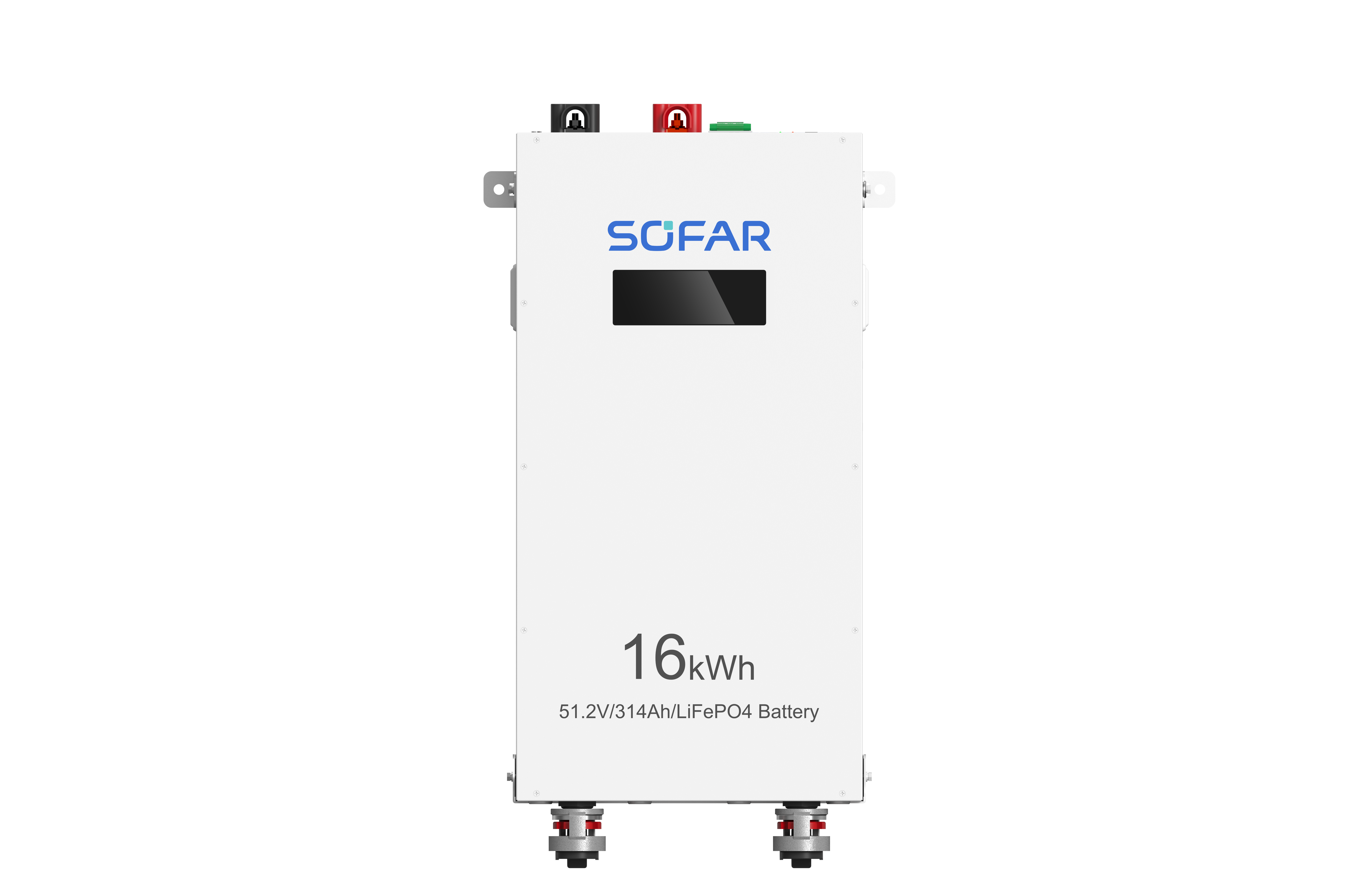

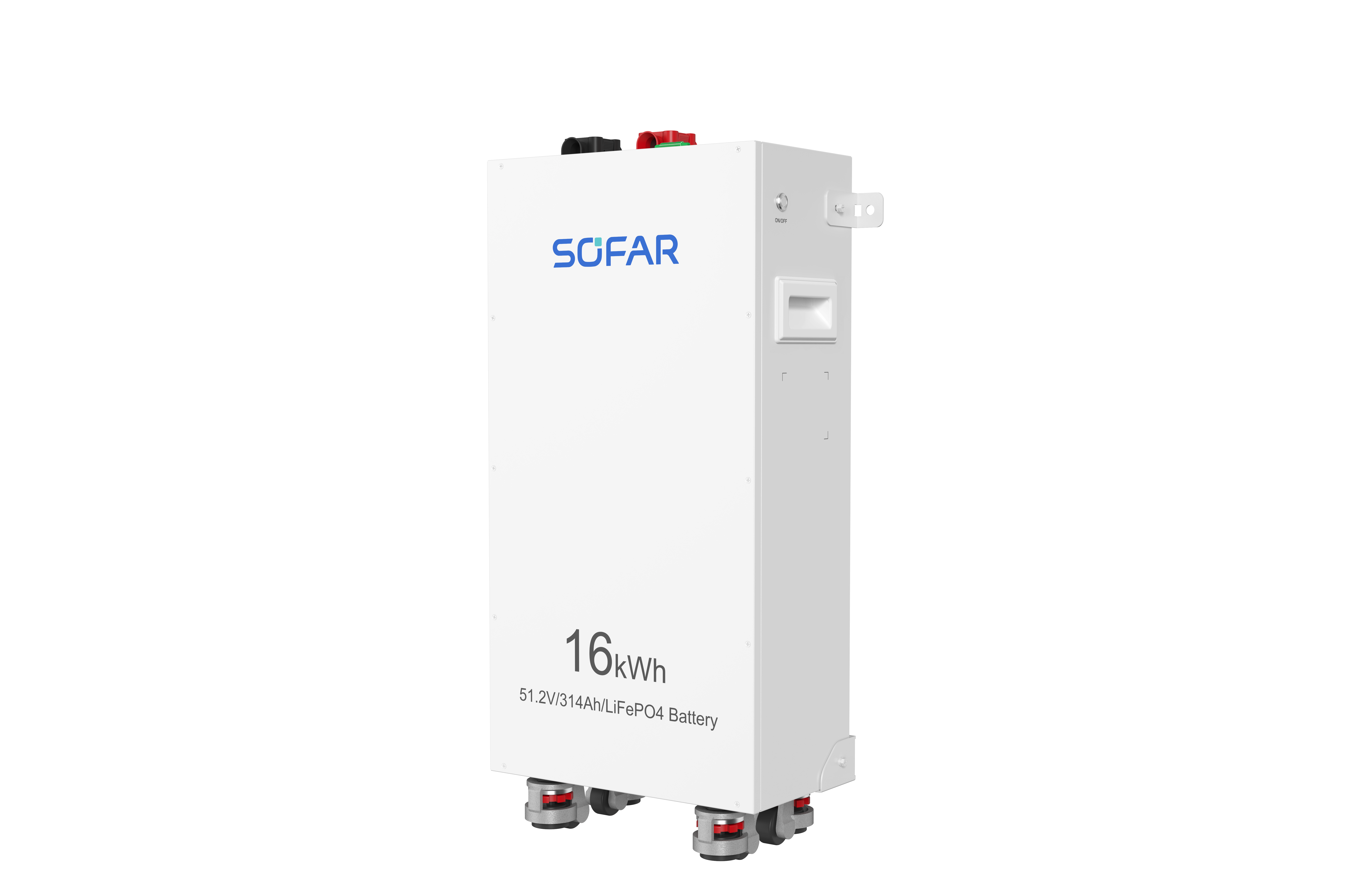

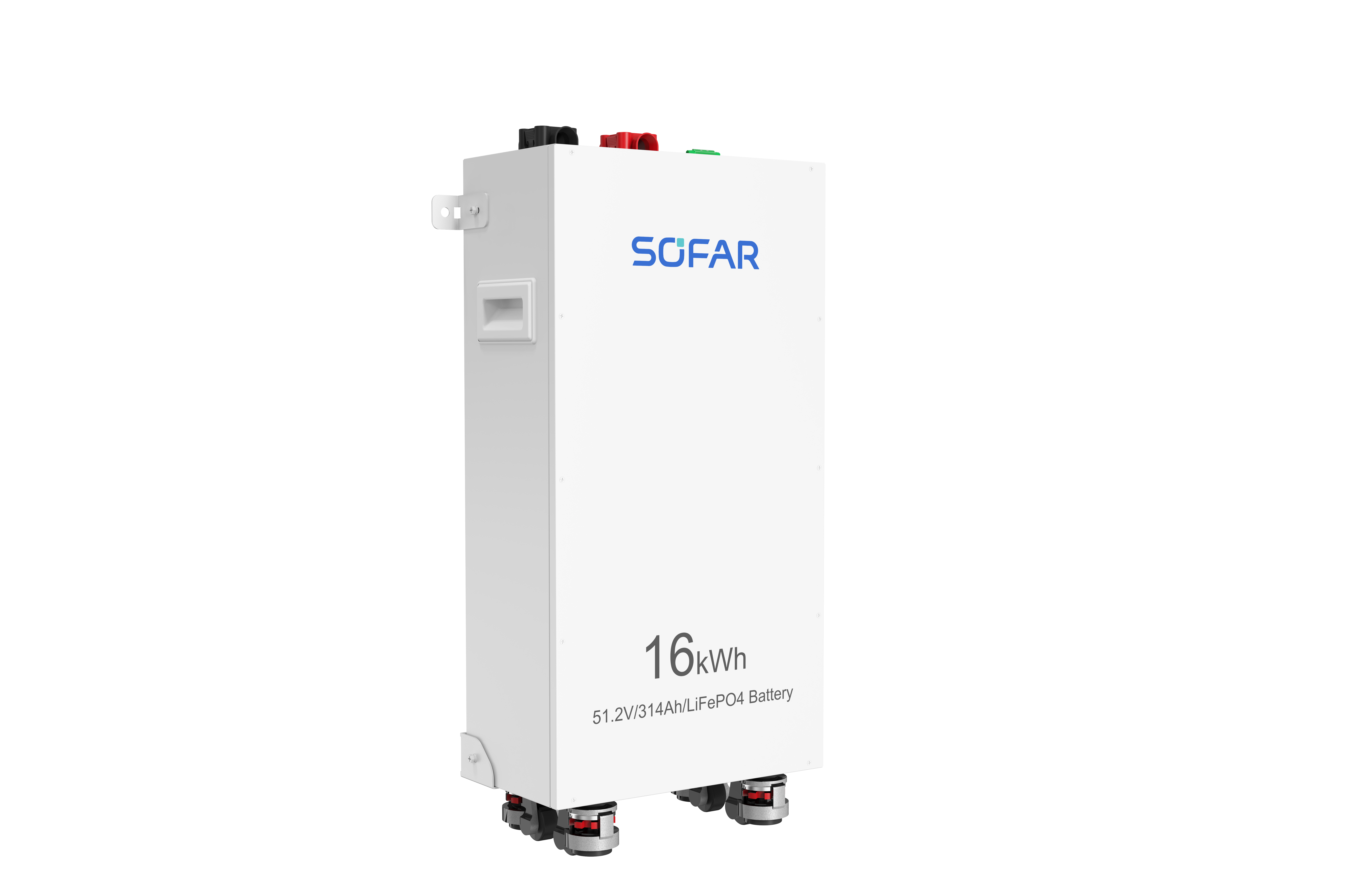

SF-16KWH-L1: High-Power Low-Voltage LFP Battery by SOFAR
Introducing the SF-16KWH-L1, a 16kWh low-voltage battery built with lithium iron phosphate (LFP) technology—engineered for high-demand residential, small commercial, and industrial energy storage systems. Combining exceptional power output, flexible scalability, and top-tier safety, it’s designed to maximize solar energy utilization and deliver reliable backup power.
Core Advantages
High-Power Performance: Delivers 7.5kW rated charging/discharging power and up to 10kW continuous output, with max 200A discharge current to handle heavy loads effortlessly.
Flexible Capacity Expansion: Modular design supports up to 16 units in parallel, expanding total capacity to a massive 256kWh—adapting to growing energy demands.
Ultimate Safety Assurance: Built-in intelligent BMS (Battery Management System) provides full protection from cell to module, paired with stable LFP chemistry for long-term reliability.
Easy Installation & Maintenance: Equipped with 500kg-rated casters for convenient movement; auto-networking function simplifies setup, while remote monitoring and OTA upgrades (via SOFAR inverter) reduce maintenance hassle.
Key Specifications
Category
Details
Battery Type
Lithium Iron Phosphate (LFP)
Total Energy
16 kWh
Rated Voltage
51.2 V
Operating Voltage Range
44.8 V ~ 57.6 V
Rated Charging/Discharging Power
7.5 kW / 7.5 kW
Rated Charging/Discharging Current
150 A / 150 A
Max. Charging/Discharging Current
150 A / 200 A
Max. Parallel Quantity
16 units
Communication
CAN
Dimensions (WHD)
435×245×820 mm
Weight
115 kg
Protection Rating
IP20
Cooling Method
Natural cooling
Operating Temperature
Charge: 0°C ~ +55°C; Discharge: -20°C ~ +60°C
Humidity Range
5% ~ 95%
Installation Type
Floor Mounted
Max. Operating Altitude
4000 m
