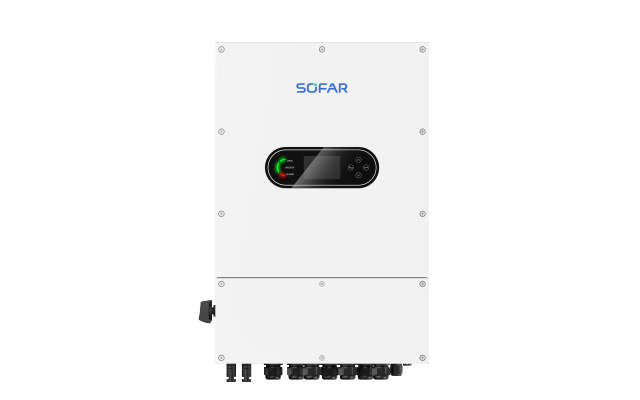

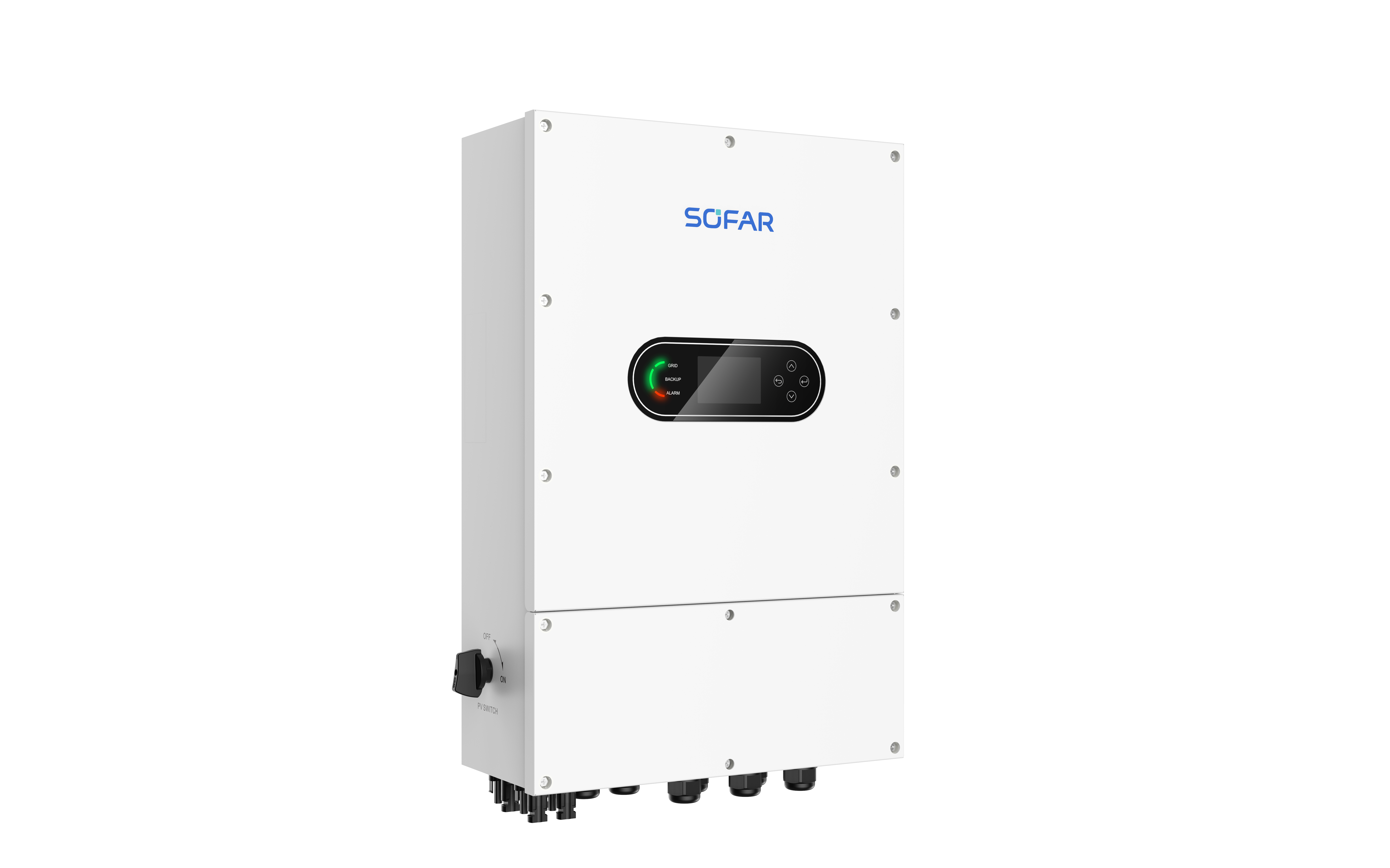

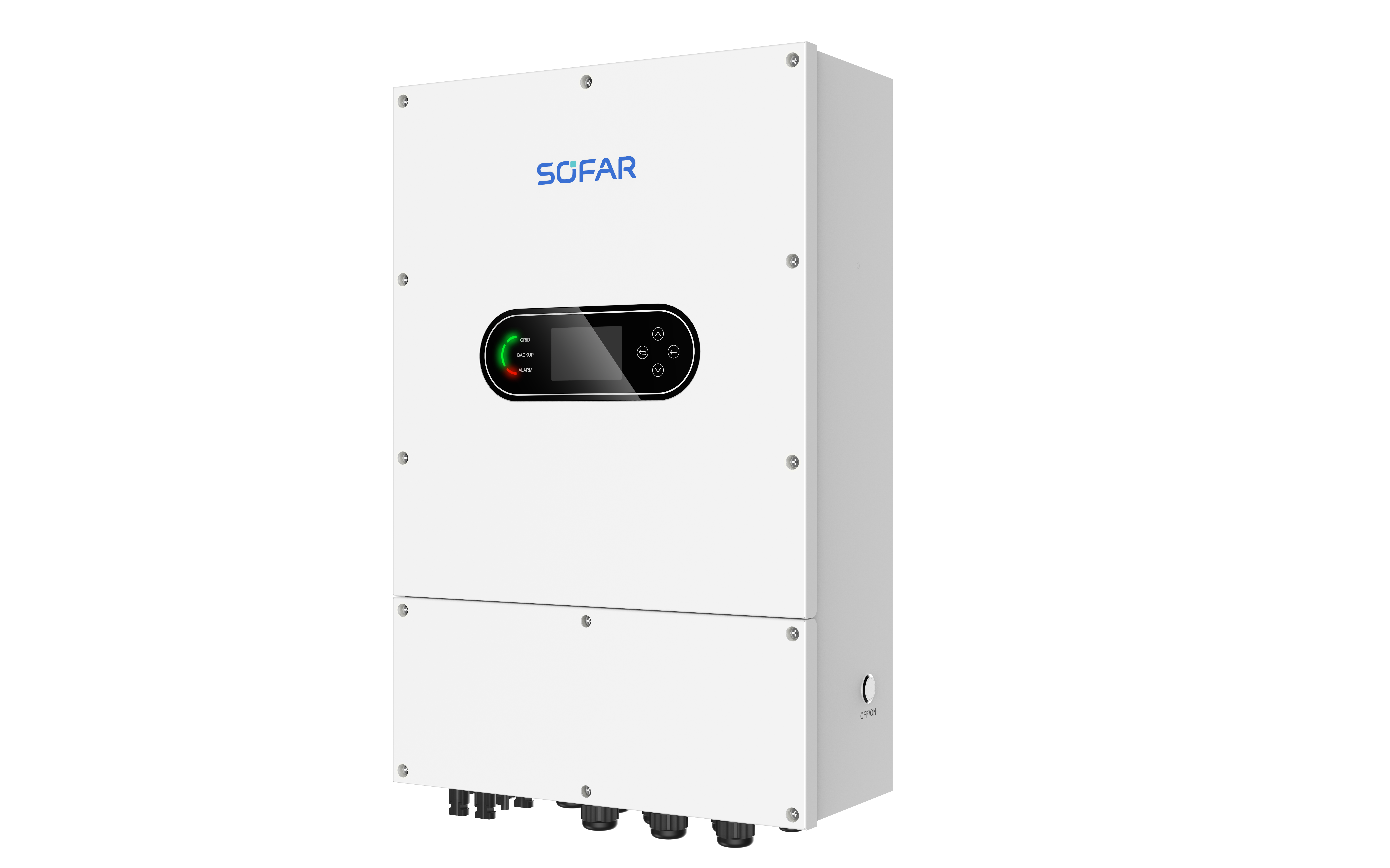

HYD-LS1 Series (10/12kW): High-Power Single-Phase Hybrid Inverters by SOFAR

Core Advantages

• Superior Solar Capture: 2 MPPT trackers with 60-500Vdc voltage range and 40A max input current per MPPT, optimizing energy harvest from solar panels.
• Extreme Load Handling: 200% overload capacity for 10 seconds, easily powering high-consumption appliances and managing load spikes.
• Blazing-Fast Backup Switching: 4ms seamless transition between grid and backup power, keeping critical loads running without disruption.
• Powerful Energy Management: Max 190A charge/discharge current (250A for 12kW model) and 10kW charging power, paired with RS-485/CAN BMS communication for efficient battery control.
• Flexible Scalability: Multiple inverters can be paralleled to build a microgrid, growing with your energy demands.
• Reliable Backup Options: Supports diesel generator integration, extending power supply during prolonged grid outages.
• Built-In Safety: Integrated AFCI protection and comprehensive safety features, ensuring worry-free operation.

Key Specifications

Reliability & Smart Control

• Comprehensive Protection: Features PV reverse connection protection, battery reverse connection protection, output short circuit/overcurrent/overvoltage protection, insulation impedance detection, residual current detection, and Type II surge protection (compliant with EN/IEC 61643-11).
• High Efficiency: 99.9% max MPPT efficiency, 97.6% max inverter efficiency, and <15W standby self-consumption for minimal energy waste.
• Easy Monitoring: LCD display + mobile app access, with RS485 communication (optional WiFi/4G/LAN) for real-time data tracking and remote management.
• Durable Design: Wall-mounted installation with intelligent airflow cooling, IP66 protection, and 4000m max operating altitude—suitable for indoor and outdoor use.
