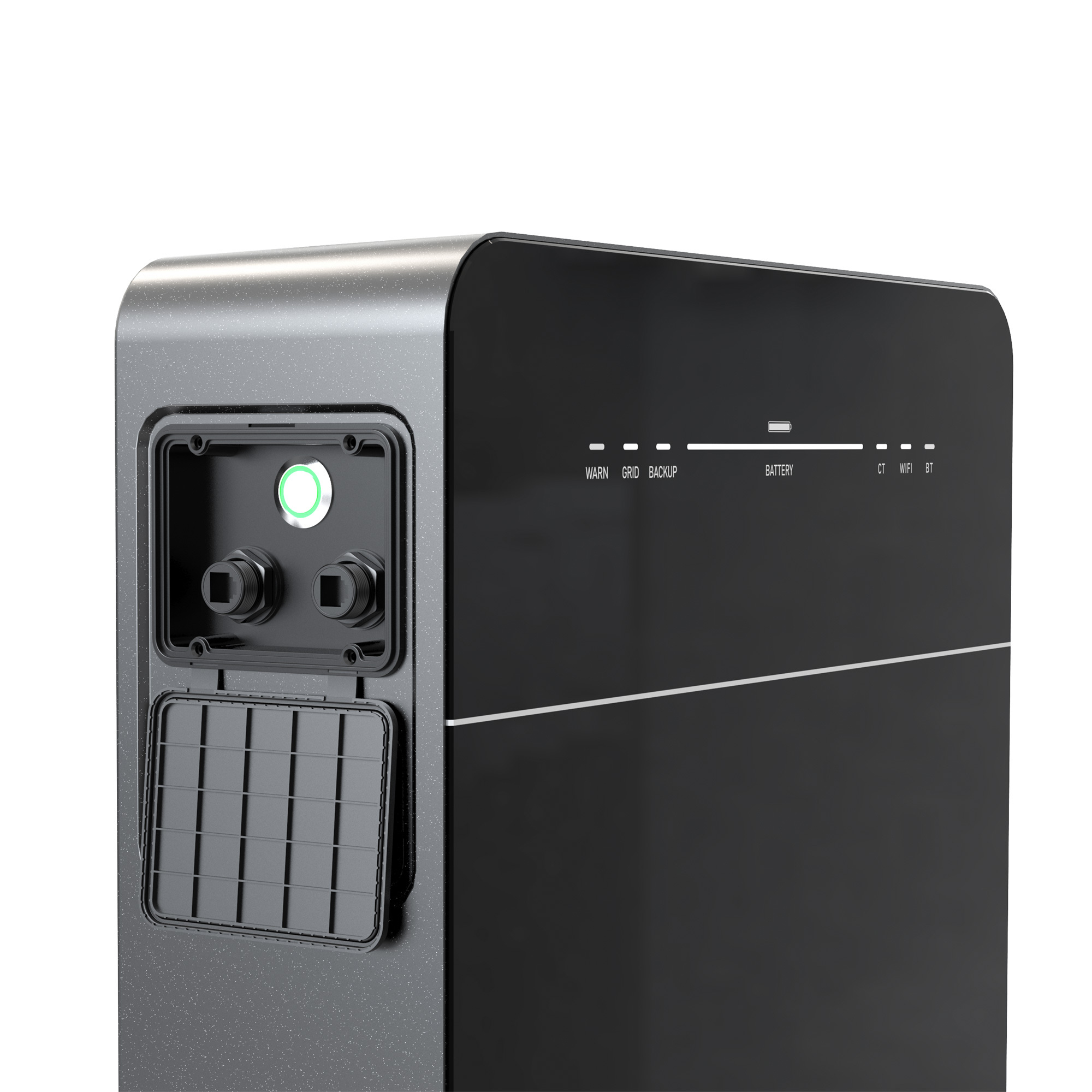

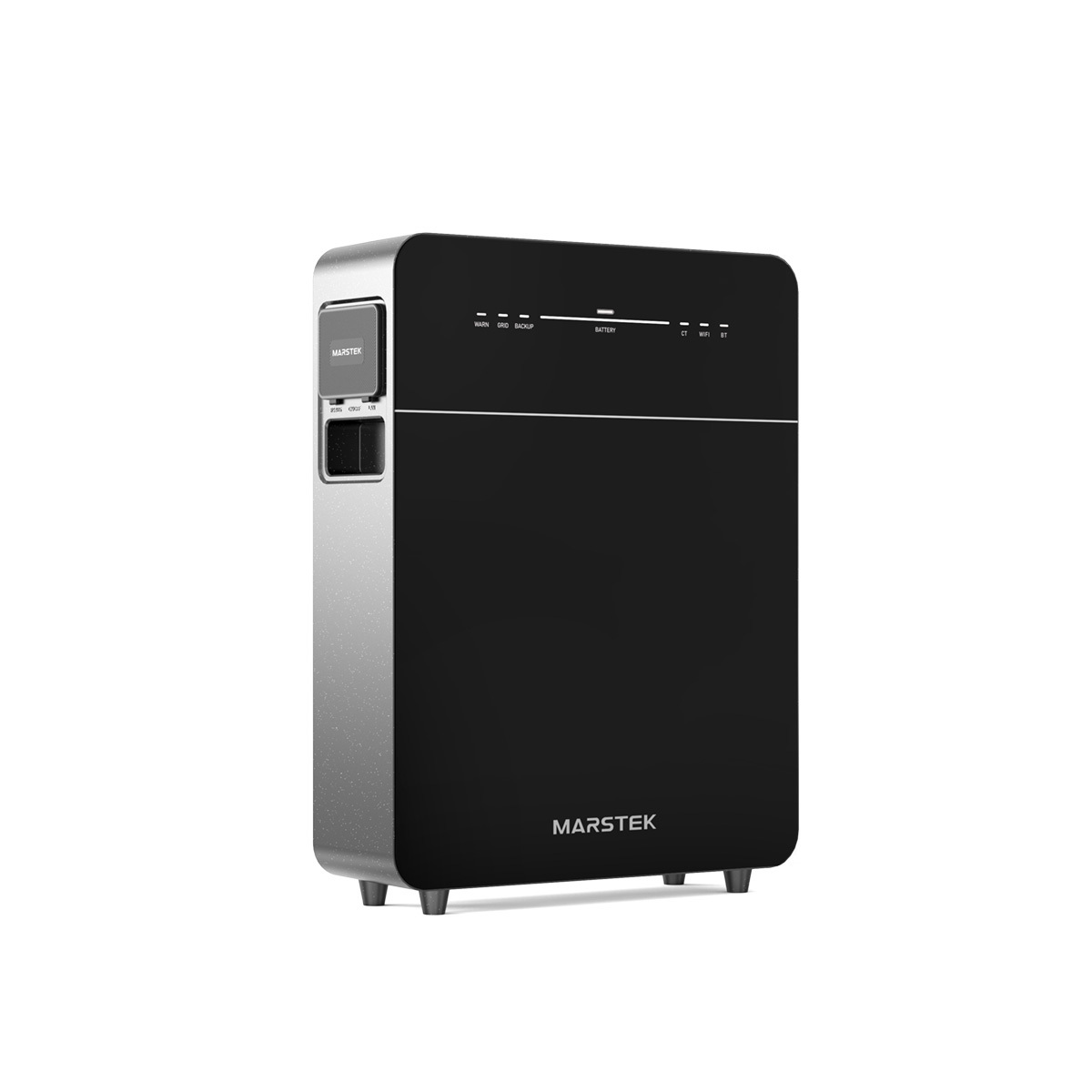

MARSTEK VENUS-E3.0: Plug-in AC Battery Energy Storage System

Core Product Advantages

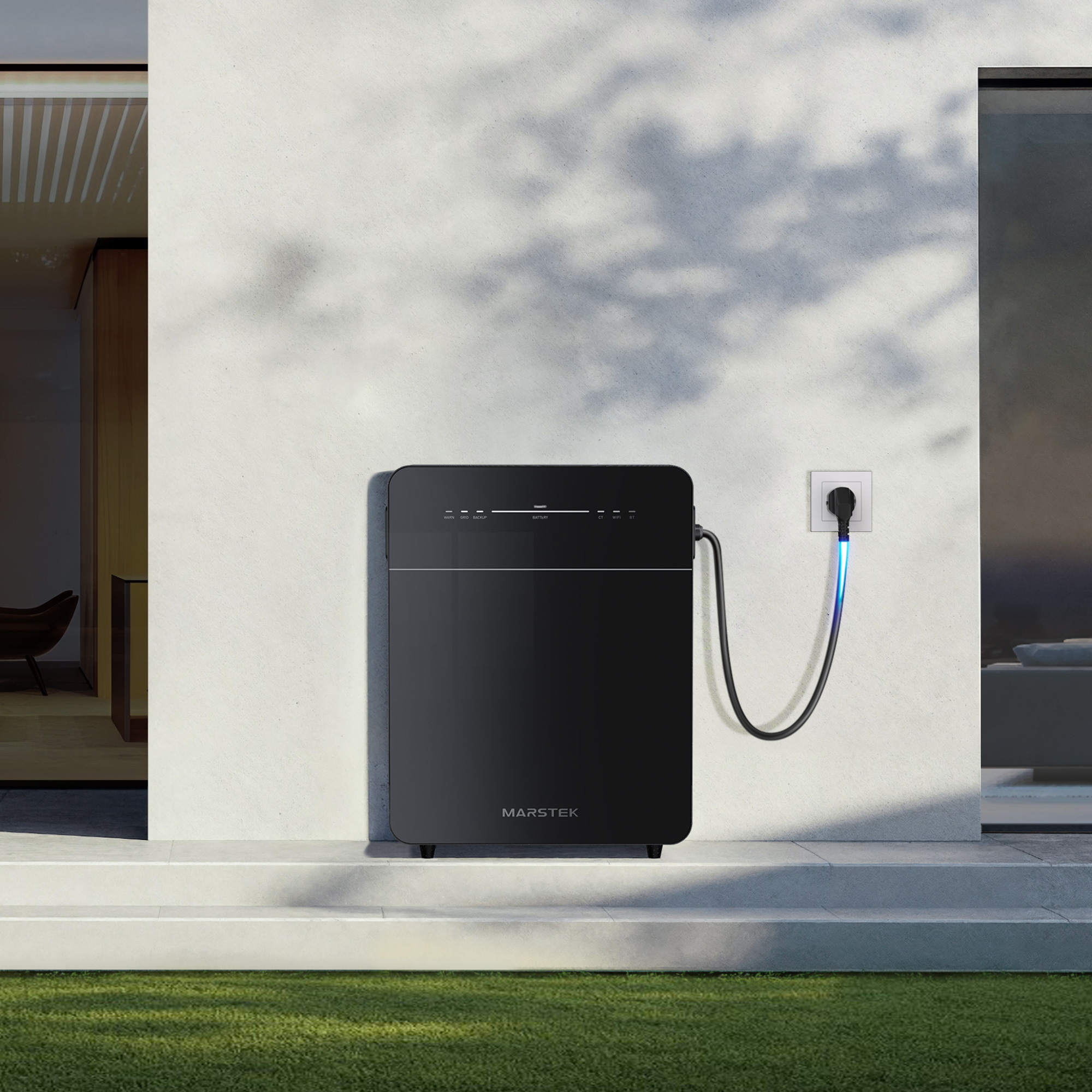

• Plug & Play Convenience: 3-wire Euro 16A plug for easy installation, no complex setup required.
• 100% Solar Compatibility: Works with existing solar systems, supporting anti feed-in and 100% self-consumption via smart meters (MARSTEK, Shelly, everHome, Homewizard).
• AI-Optimized TOU Management: Reduces energy costs by intelligently adjusting charging/discharging based on time-of-use tariffs.

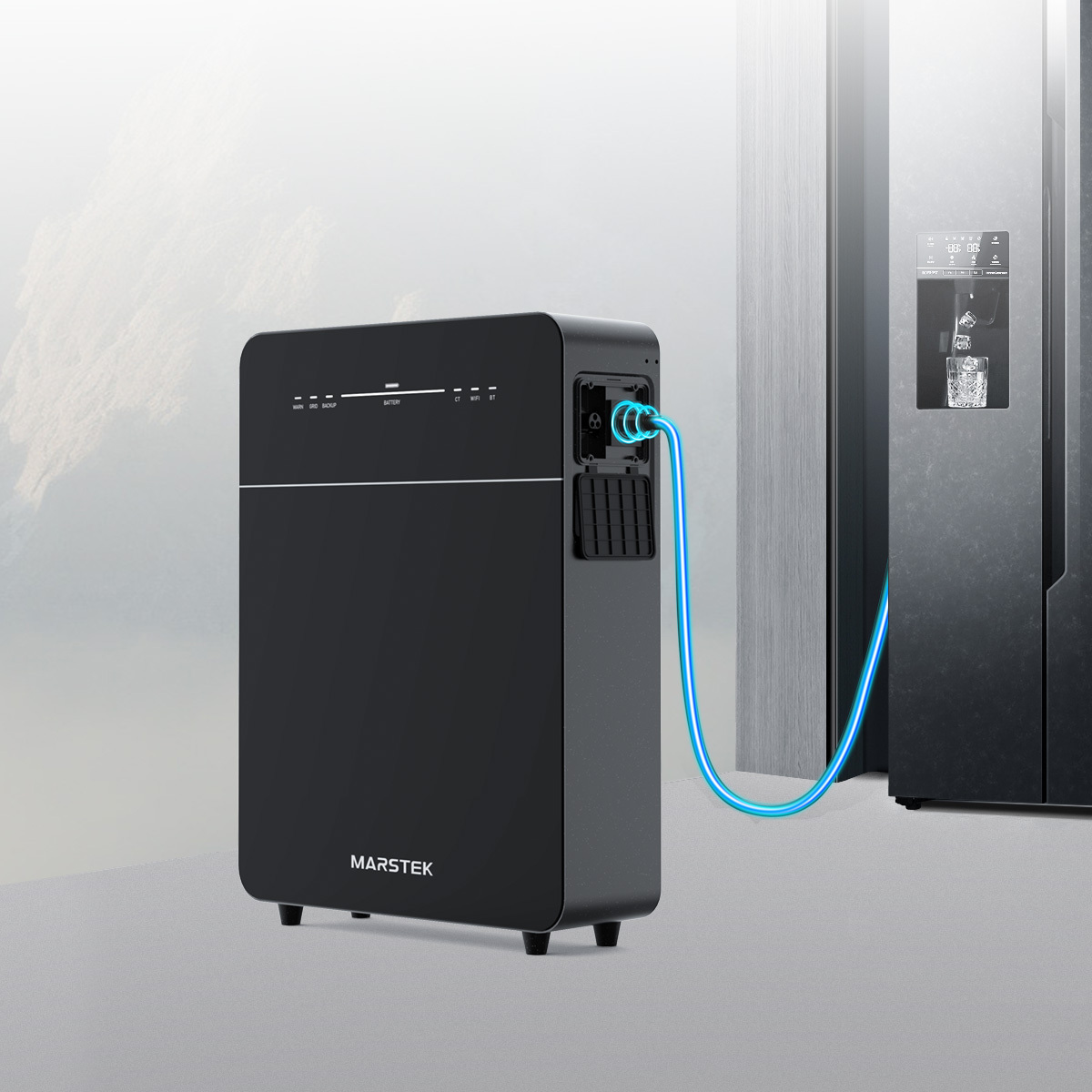

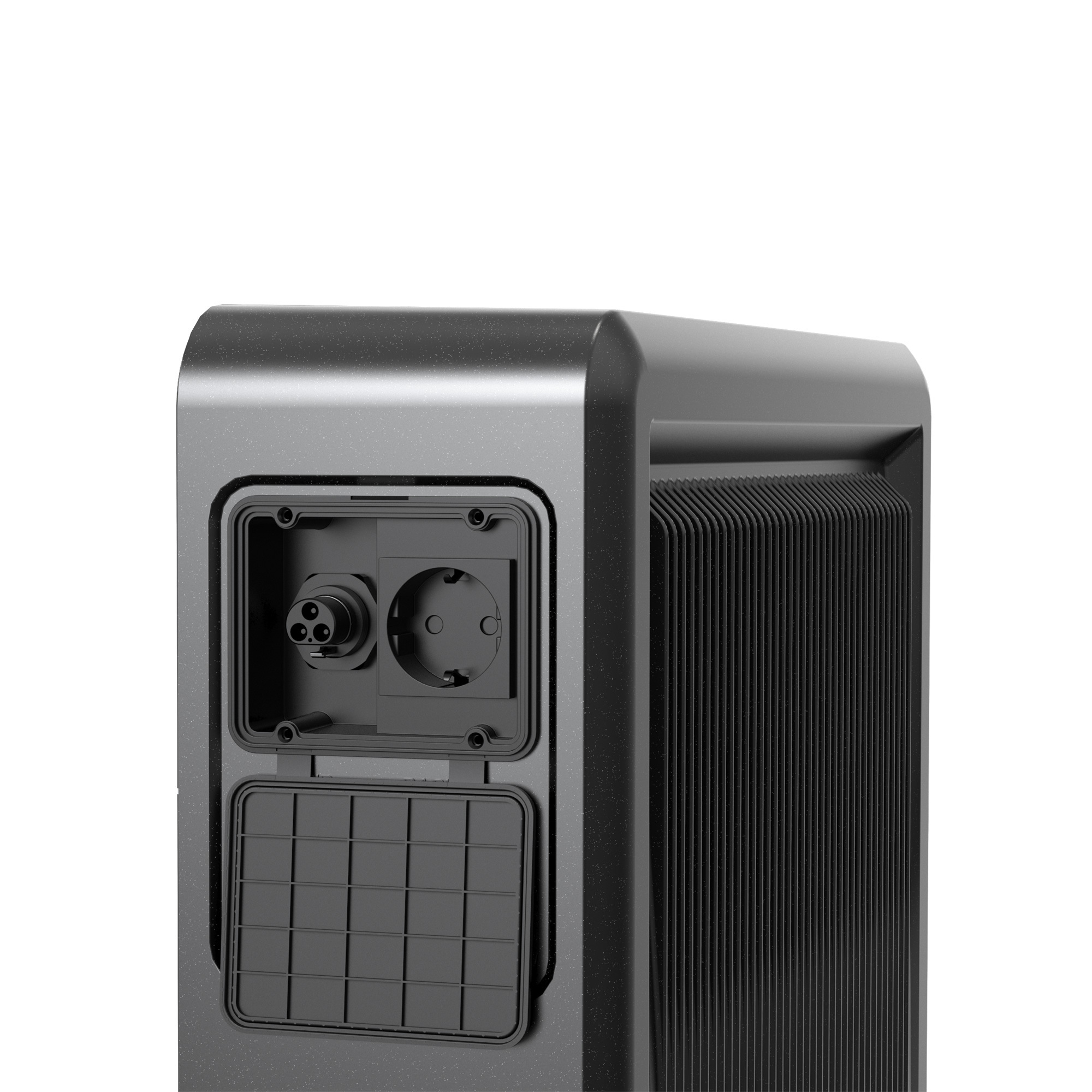

• Flexible Backup Power: 2.5kVA rated backup power, 3.5kVA peak (10s), with a Euro 3-hole off-grid socket for critical loads.
• Scalable Capacity: Single-phase up to 7.5kW/15.36kWh, three-phase up to 22.5kW/46.08kWh to meet home/business needs.
• Durable & Smart: >6000 cycles, IP65 protection, natural cooling, and multiple communication interfaces (Wi-Fi, Bluetooth, Ethernet, RS-485).

Key Performance Metrics

• Battery Capacity: 5.12kWh LiFePO4 (LFP) battery with 90% depth of discharge (DoD).
• On-Grid Power: 800VA/2.5kVA rated output, >0.99 power factor, THDi <3%.
• Backup Power: 2.5kVA rated, 3.5kVA peak (10s), THDu <3% for linear loads.
• Efficiency: Maximum battery-to-AC efficiency >93.5%.
• Cycle Life: >6000 cycles (25°C) for long-term reliability.
• Warranty: 10-year warranty for peace of mind.

Technical Specifications

Versatile Application Scenarios
