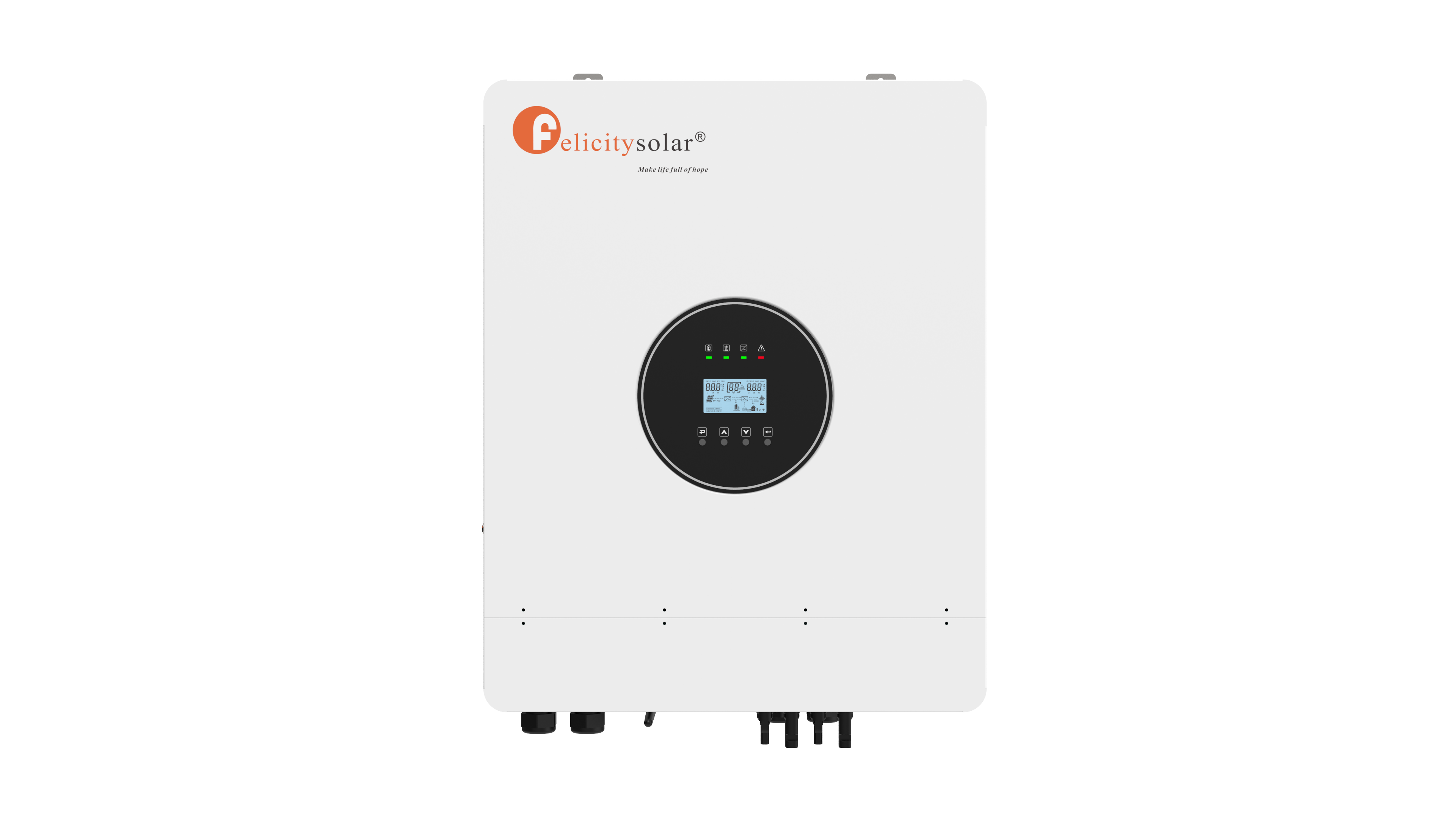

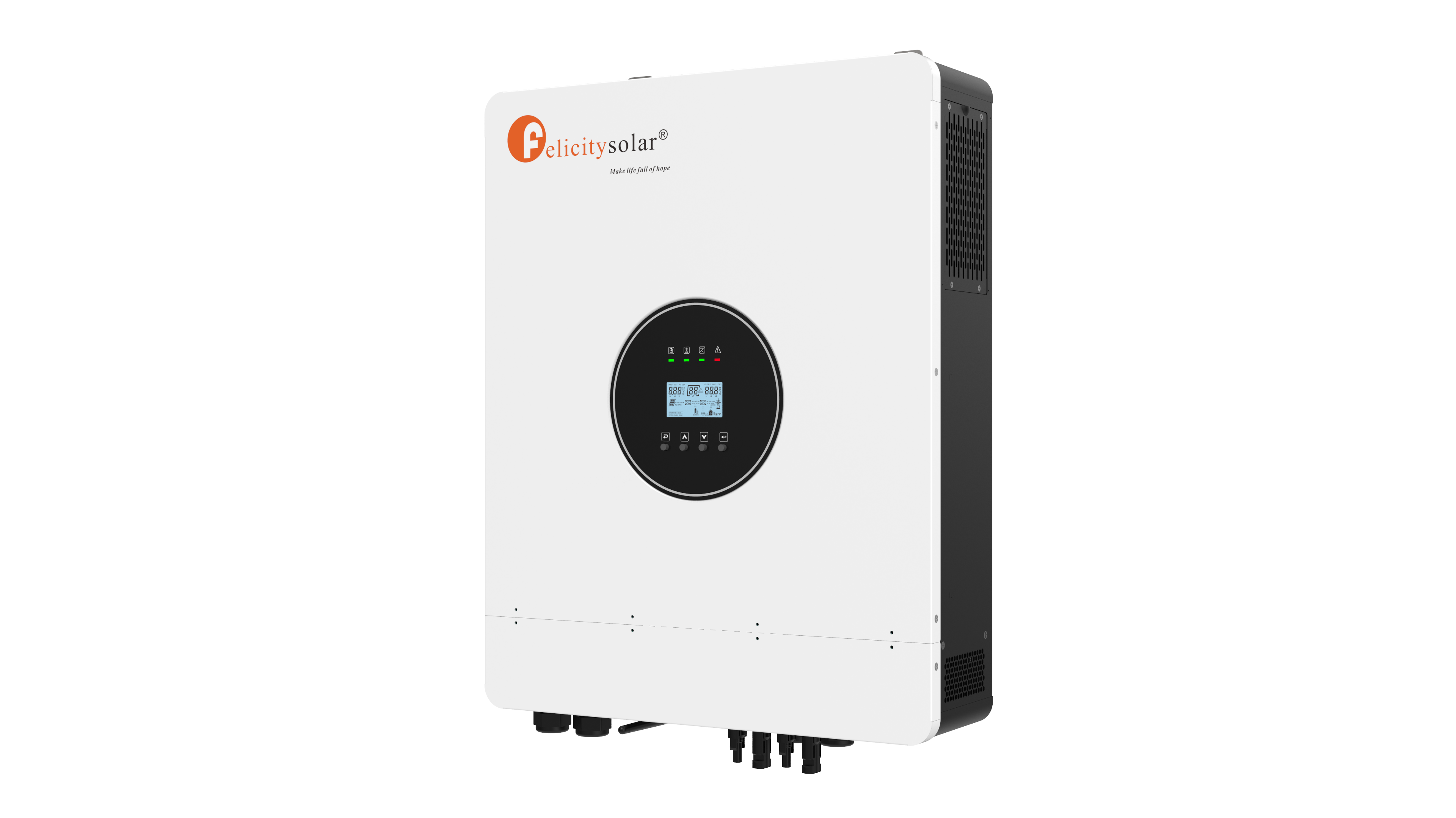

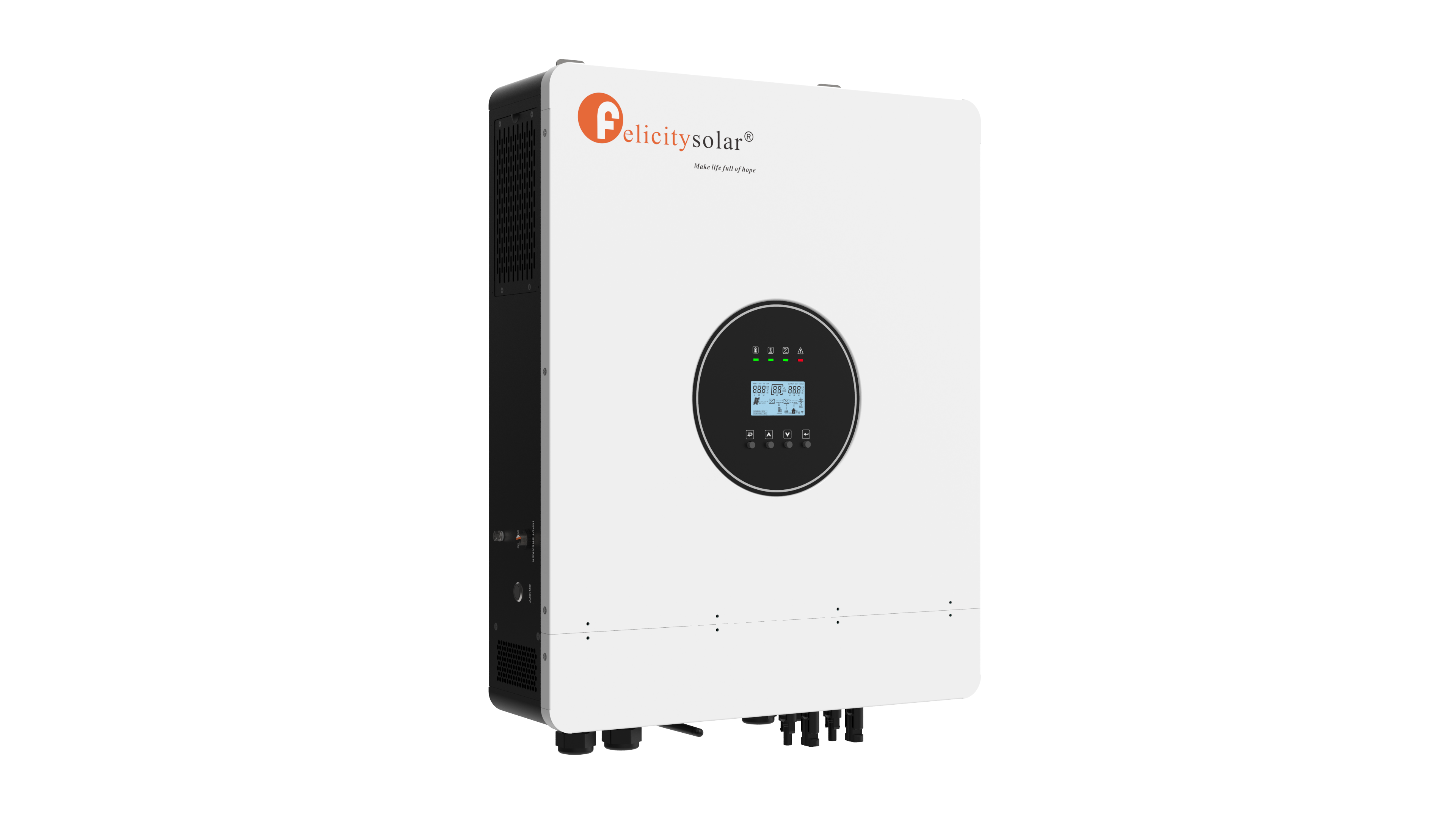

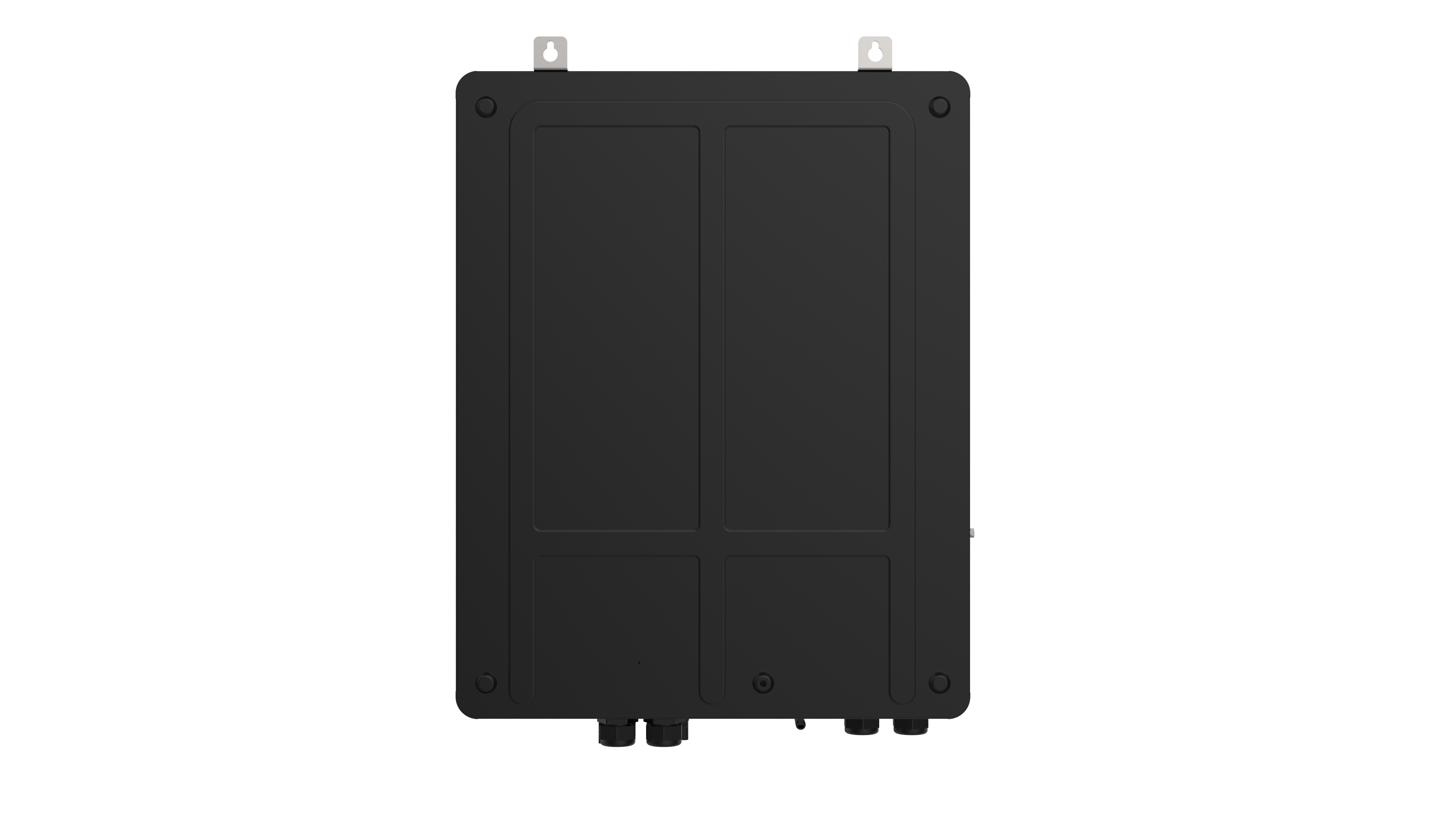

Felicitysolar IVEM Series 8KVA Off-Grid High-Frequency Solar Inverter (IVEM8048-II)
Harness powerful, smart energy conversion with the IVEM8048-II—an 8KVA off-grid high-frequency solar inverter from Felicitysolar, crafted to deliver reliable performance and flexible control that powers a life full of hope.

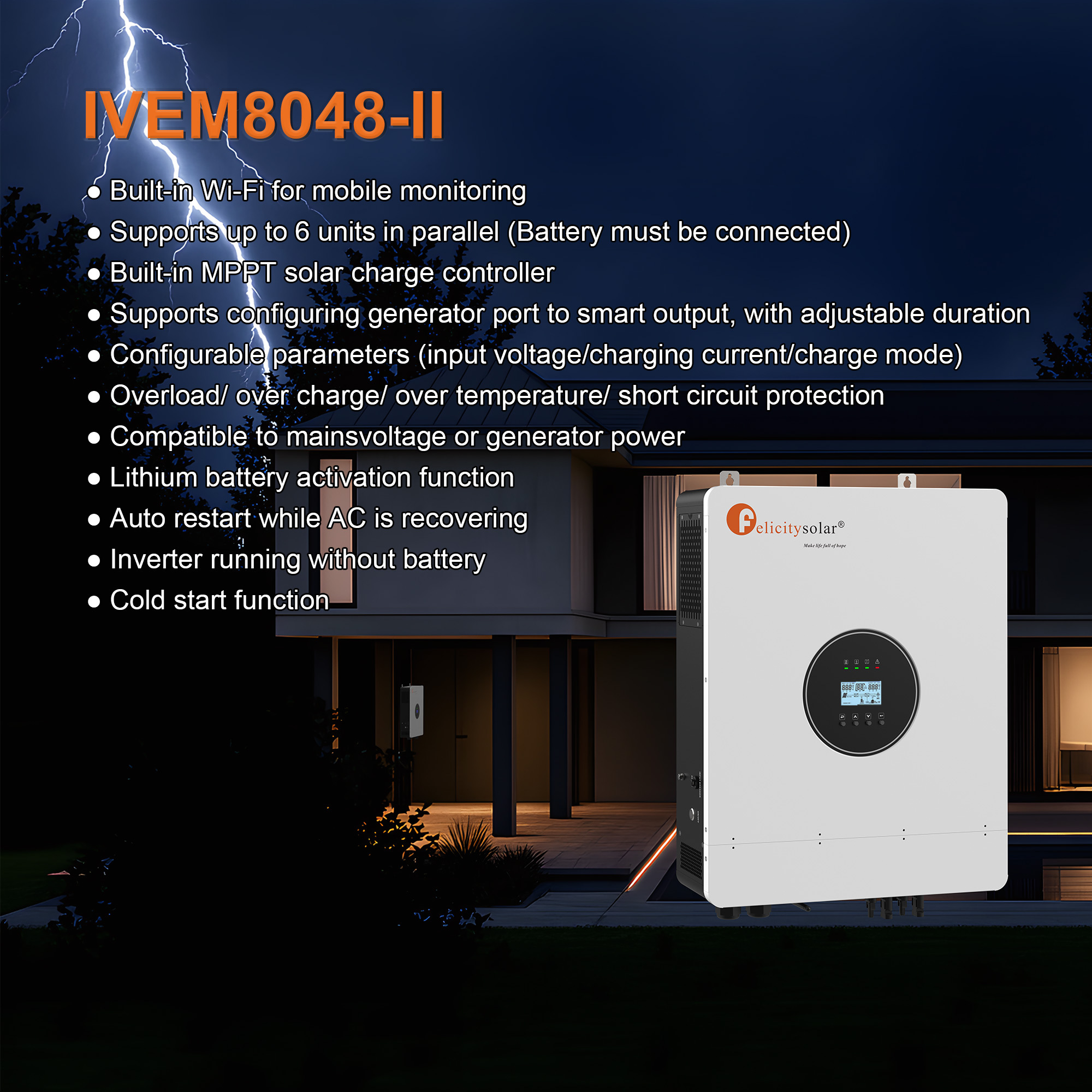

Core Features
Remote Monitoring & Control: Built-in WiFi enables mobile access, supporting parameter adjustments (input voltage, charging settings) via APP.
Scalable Parallel Connection: Supports up to 6 units in parallel (battery connection required) for expanded power capacity.

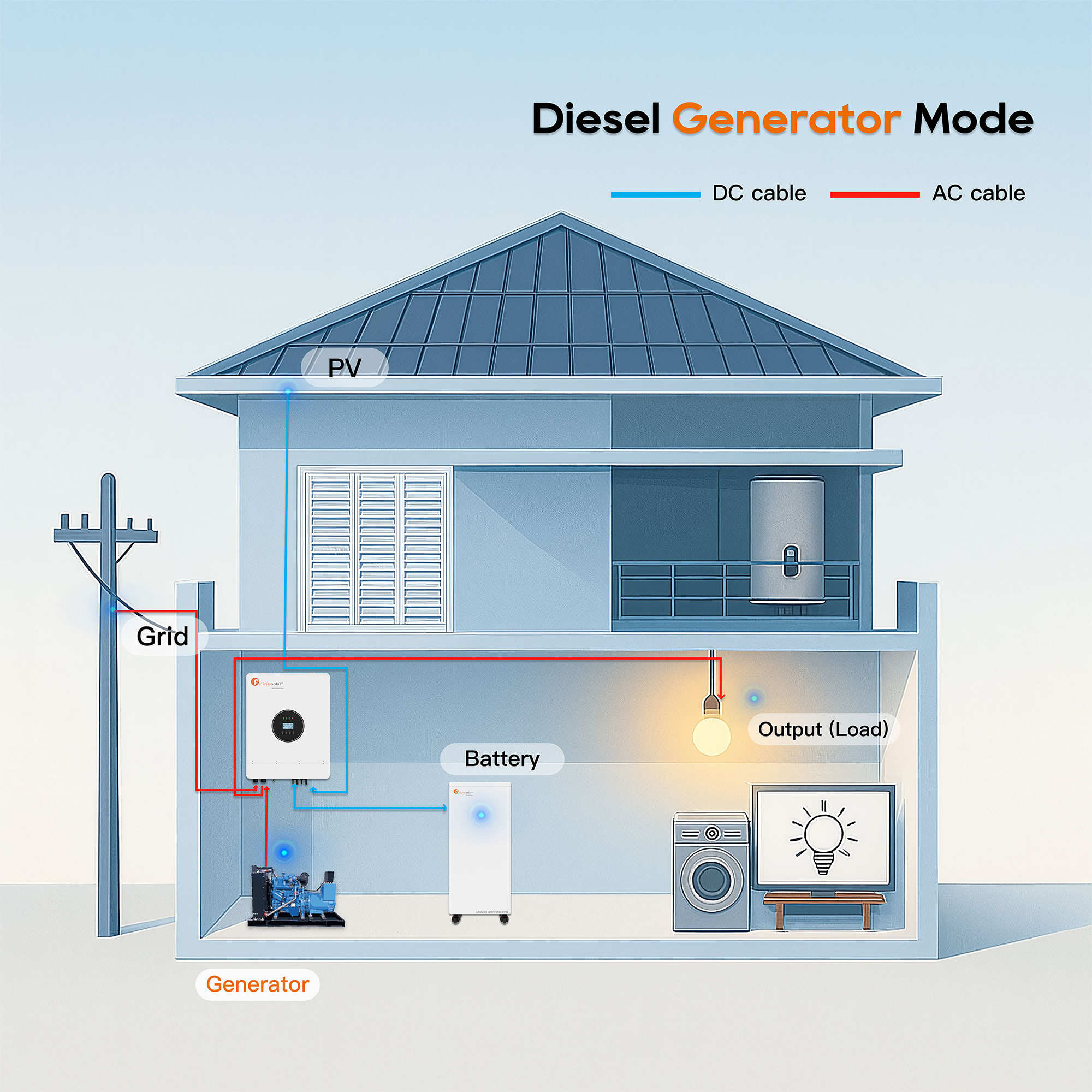

Multi-Power Compatibility: Works seamlessly with mains voltage, generator input, and solar PV systems.
Built-in MPPT Charger: Integrates an MPPT solar charge controller to maximize solar energy harvest.
Lithium Battery Support: Features lithium battery activation function for seamless integration.
Battery-Free Operation: Runs without a battery via AC pass-through for continuous power supply.
Intelligent Protection: Equipped with overload and over-temperature protection mechanisms.

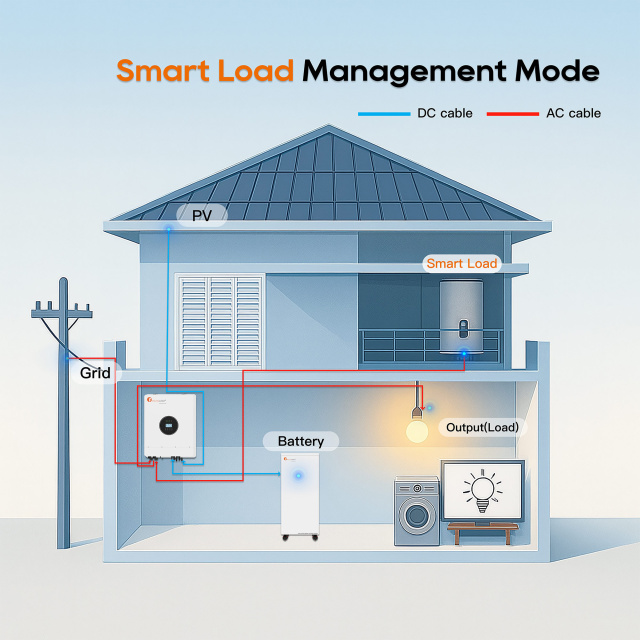

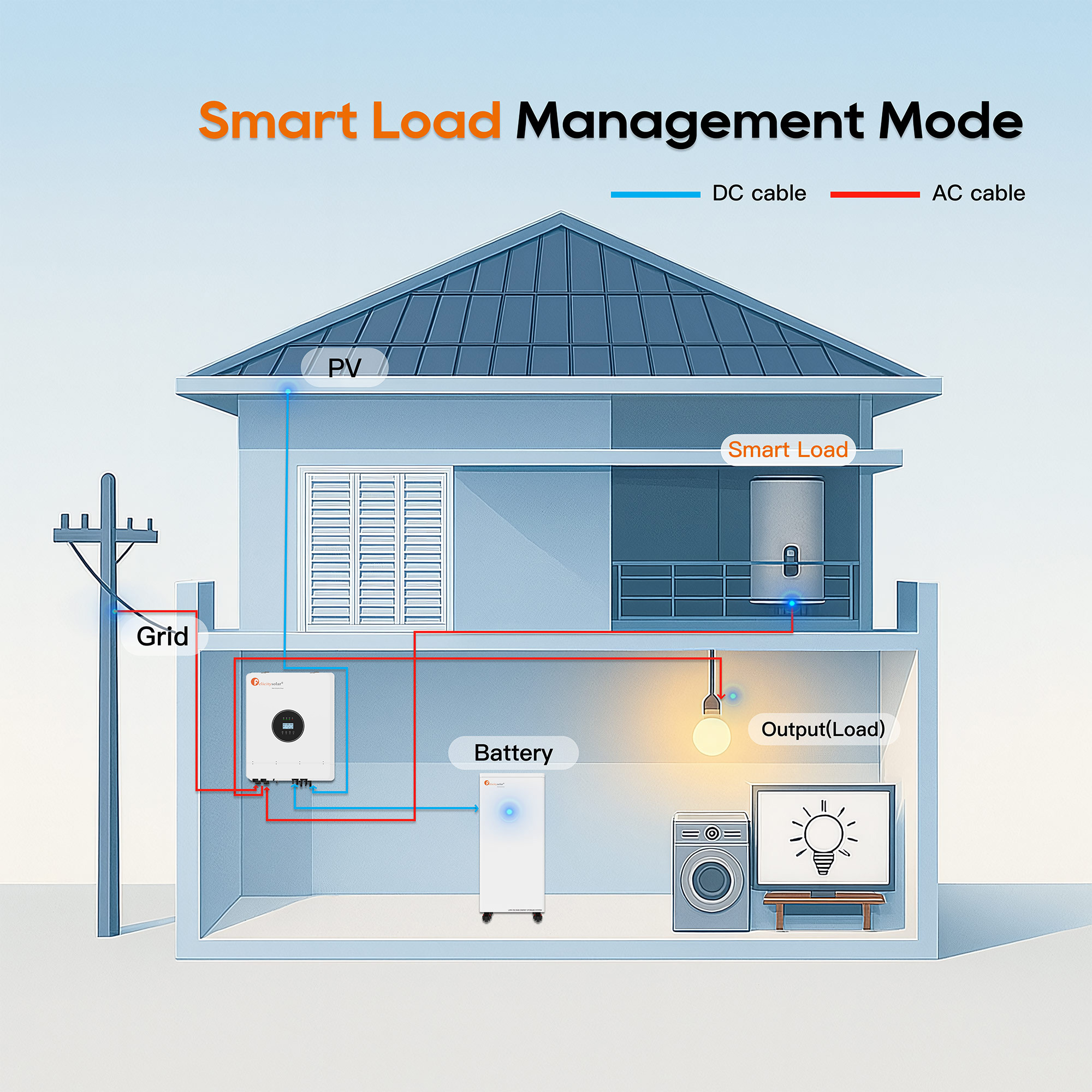

Practical Functions: Cold start capability and auto-restart when AC power recovers, plus a customizable smart output port.
Technical Specifications
Parameter
Details
Line Mode Specifications
Rated Output Power (VA)
8000VA
Rated Output Power (W)
8000W
Nominal DC Input Voltage
48V
Nominal Input Voltage
230Vac
Max. AC Input Voltage
280Vac
Nominal Input Frequency
50Hz/60Hz (Auto Detection)
Pass Through Without Battery
Yes
Utility & Generator Charging Mode Specifications
Nominal Input Voltage
230Vac
Input Voltage Range
90-280Vac
Max. Charge Current
150A
Charge Current Regulation
10-150A (Adjustable, 1A increment)
Over Charge Protection
Yes
Solar Charging & Grid/GEN Charging
Max. PV Open Circuit Voltage
500V
PV Voltage Working Range
90V-450V
Max. Input Power
10000W (5000W for single PV)
Max. Solar Charging Current
150A
Max. Charging Current (PV+Grid or GEN)
150A
Max. Input Current
20A X 2 (MAX 40A)
Min. Startup Voltage
100V
Inverter Mode Specifications
Output Voltage Waveform
Pure Sine Wave
Nominal Output Voltage
230Vac ±5%
Nominal Output Frequency
50Hz ±0.3Hz / 60Hz ±0.3Hz (Adjustable)
Parallel Capability
Yes, Up to 6 Units
Capable of Starting Electric Devices
Yes
Output Short Circuit Protection
Yes
General Specifications
Operating Temperature
-10°C ~ 50°C
Storage Temperature Range
-15°C ~ 60°C
Net Weight
23.7KG
Product Dimension
607×464×141MM
Package Dimension
712×582×259MM
Certification
CE-EMC, IEC 62109-1/2, IEC 63027
Notes
Product specifications may vary during continuous improvements. Please contact us for the latest details.
*Refer to Felicitysolar's Warranty Policy for applicable conditions.
Product Highlights
High Power Output: 8000W rated power meets the energy needs of large homes, small businesses, or off-grid setups.
Flexible Scalability: Parallel connection of up to 6 units adapts to growing power demands.
Efficient Energy Harvest: Built-in MPPT controller optimizes solar charging, reducing energy waste.
User-Friendly Control: Mobile APP and parameter customization make monitoring and operation intuitive.
All-Round Adaptability: Works with multiple power sources and supports battery-free running for versatile use.
