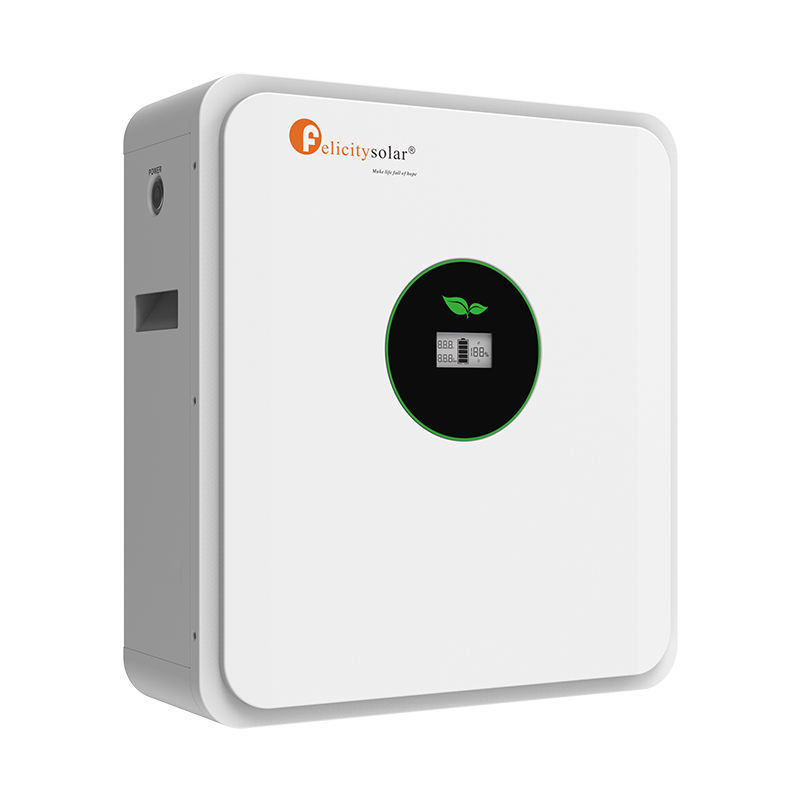

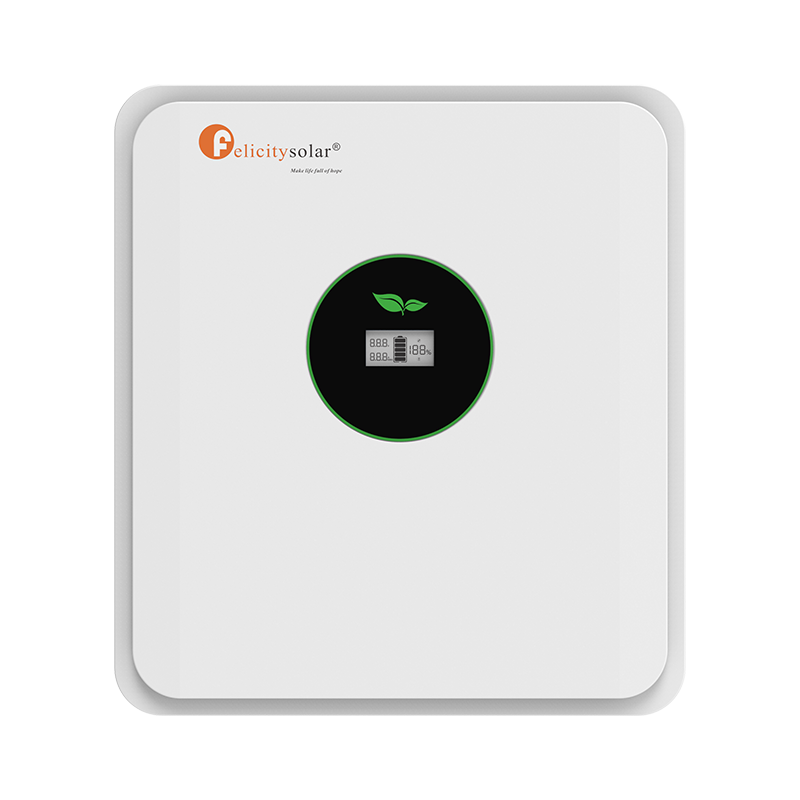

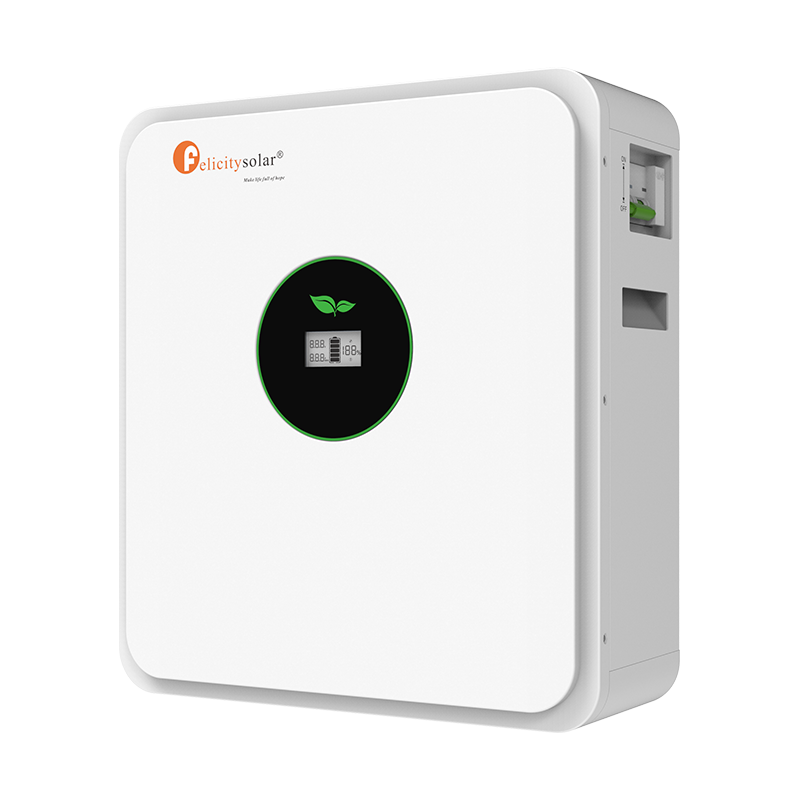

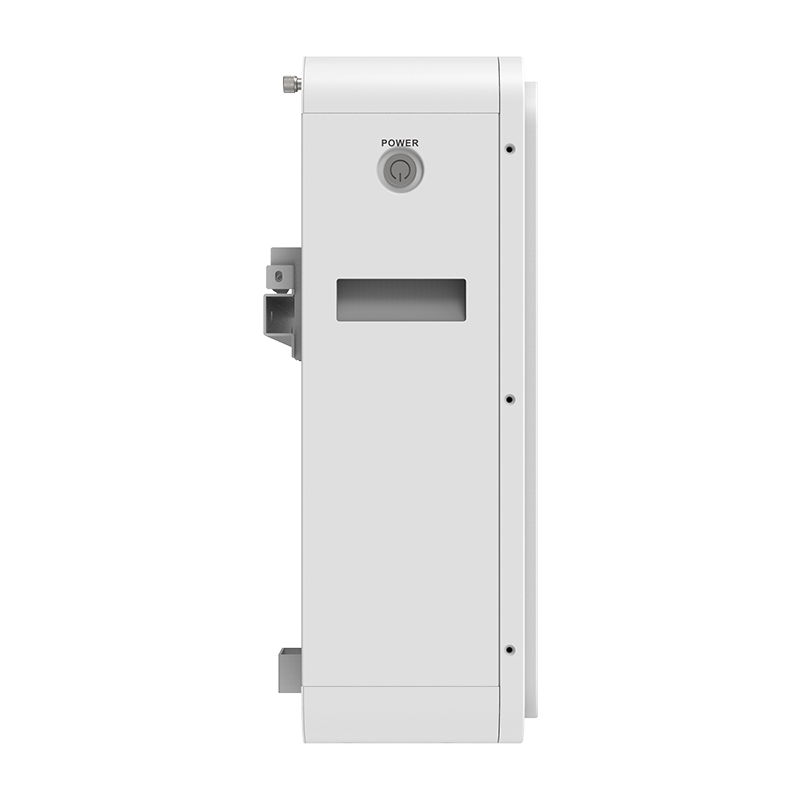

Elevate your energy storage experience with Felicity Solar’s 25.6V LiFePO4 Battery Pack—designed to make life full of hope through reliable, efficient, and safe power solutions. Available in two models (FLA24100: 2.56kWh, FLA24200: 5kWh), this low-voltage battery pack combines cutting-edge technology with user-centric design, perfect for residential and small commercial solar energy systems.
Core Features
Scalable Expansion: Parallel connection support for up to 15 units, delivering a maximum capacity of 38.4kWh (FLA24100) or 75kWh (FLA24200) to meet growing energy needs.
Remote Monitoring: Built-in WiFi and Bluetooth enable real-time tracking of battery data via mobile devices, keeping you informed of status anytime, anywhere.

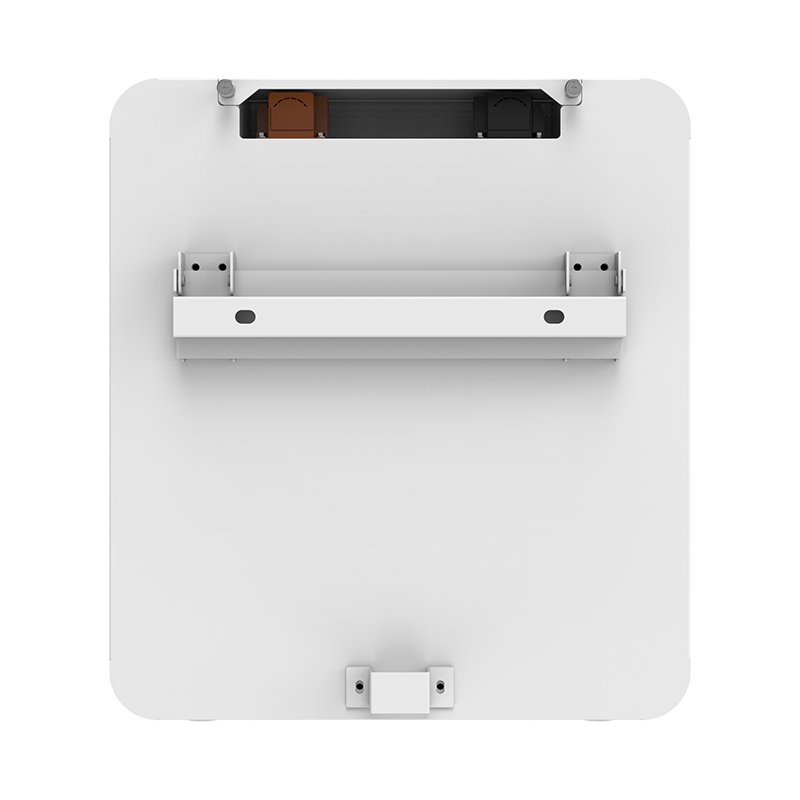

Flexible Installation: Choose between wall-mounted or floor-mounted setup to fit limited spaces and diverse installation scenarios.
Superior Safety & Longevity: LiFePO4 chemistry ensures higher safety (thermal stability, no thermal runaway risk) and a long cycle life of over 6,000 cycles at 0.2C/25°C (80% DOD).

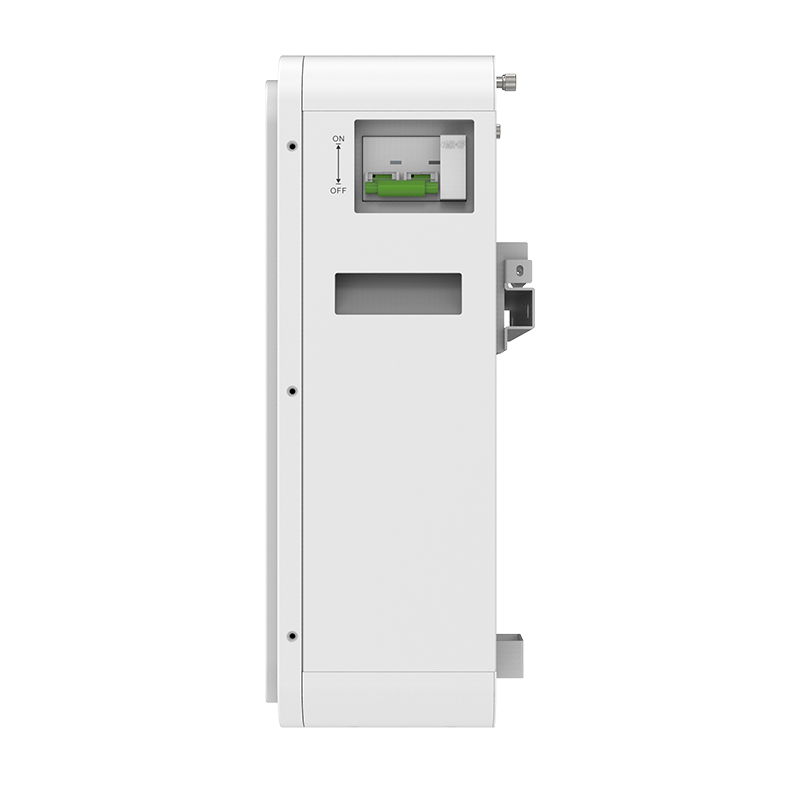

Comprehensive Protection: Equipped with smart BMS (Battery Management System), breaker, and fuse to safeguard against overcharge, over-discharge, short circuit, and over-temperature.
Wide Compatibility: Seamlessly works with leading inverter brands, ensuring hassle-free integration into existing or new solar systems.
Reliable Warranty: Backed by a 7-year warranty, reflecting our confidence in product quality and performance.
Technical Specifications
Parameter
FLA24200
Battery Type
LiFePO4
Nominal Energy
5kWh
Nominal Voltage
25.6V
Operating Voltage Range
22.4-28.8V
Recommended Continuous Charge/Discharge Current
120A
Recommended Continuous Charge/Discharge Power
≤3,000W
Maximum Charge/Discharge Current (15s)
150A
Maximum Charge/Discharge Power (15s)
3,750W
Maximum Parallel Units
15 (75kWh total)
Depth of Discharge (DOD)
≥95%
Communication Interface
RS485/CAN
Protection Degree
IP21
Charging Temperature Range
0°C to +55°C
Discharging Temperature Range
-20°C to +55°C
Display Type
LCD + LED
Installation Type
Wall-Mounted / Floor-Mounted
Certifications
UN38.3
Product Weight
39KG
Package Weight
44KG
Product Dimension (L×W×H)
482×433×194MM
Package Dimension (L×W×H)
600×555×282MM
Notes: 1. Maximum continuous charge/discharge current varies by temperature and SOC. 2. Cycle life test conditions: 0.2C charging/discharging @25°C, 80% DOD. Product specifications are subject to change due to continuous improvement. Please contact us for the latest details. Warranty terms apply per Felicity Solar’s official Warranty Policy.
