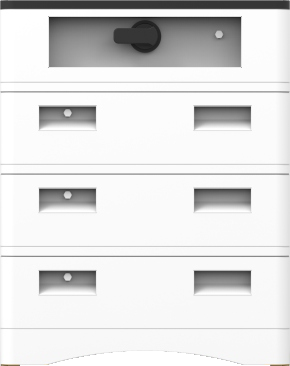

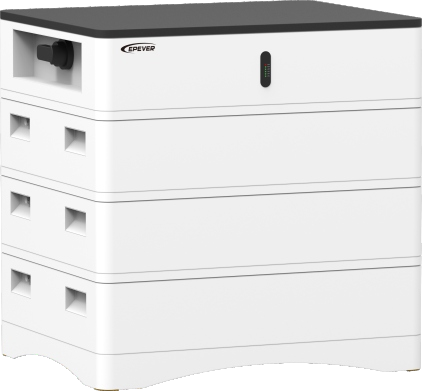

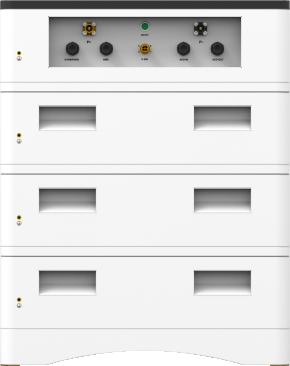

EPEVER High-Voltage Household Energy Storage Lithium Battery

Subtitle: Scalable, Durable & Safe — Power Your Home with High-Voltage Efficiency

Core Product Advantages

• Premium Performance & Longevity: A-grade prismatic LiFePO4 cells ensure >5000 cycles at 80% DOD (25℃, 0.5C) and 15+ years of service life, outperforming traditional batteries.
• Flexible Scalability: Supports 2–8 series connections (204.8V–819.2V nominal voltage) and up to 12 parallel battery clusters, easily expanding energy capacity from 10.24KWH to massive loads.
• Comprehensive Safety Protection: Integrated safeguards against overcharge, over-discharge, over-current, short circuit, and extreme temperatures (charge: 0℃~+55℃; discharge: -20℃~+60℃); plus cell balancing for stable operation.
• Easy & Maintenance-Free: Stacked design enables hassle-free installation; IP65 ingress protection resists dust and water, suitable for indoor/outdoor use with minimal upkeep.
• Seamless Integration: Equipped with RS485/CAN communication interfaces; paired with the dedicated high-voltage cabinet (150–1000V operating range), it integrates smoothly with solar systems and inverters.

Key Technical Specifications

1. Battery Module (HS10.24KWH102.4V-P65F1)

• Battery Type: LiFePO4 (prismatic A-grade cells)
• Nominal Parameters: 102.4V voltage / 100Ah capacity / 10240Wh energy
• Charge/Discharge Performance: Max charge/discharge current 50A; peak discharge 120A; charge cut-off 115.2V; discharge cut-off 83.2V
• Dimensions & Weight: 750×600×195mm; 94.1±0.5Kg
• Certifications: UN38.3, MSDS, IEC62619

2. High-Voltage Cabinet (HS100A800VS-P65F1PDU)

• Operating Voltage: 150–1000V
• Current Capacity: Max charge/discharge 100A; peak discharge 120A
• Dimensions & Weight: 750×600×170mm; 26.7±0.5Kg
• Protection Rating: IP65

3. Series Connection Options

Versatile Application Scenarios

• Household Solar Storage: Pair with rooftop solar panels to store surplus energy, reduce grid reliance, and optimize electricity costs.
• Peak Shaving & Load Shifting: Capitalize on time-of-use electricity tariffs by charging during off-peak hours and discharging during peak demand.
• Emergency Backup Power: Ensure uninterrupted power for critical home loads (refrigeration, medical devices, lighting) during grid outages.
• Small Commercial Use: Support small offices, shops, or workshops with reliable high-voltage energy storage for stable operations.
