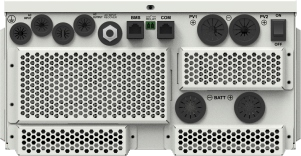

EPEVER Kirin Series: Off-Grid Inverter/Charger

Subtitle: Multi-Source Charging, Dual Output & Scalable Power for Unstable Grids

Core Product Advantages

• Multi-Source Charging Flexibility: Powers up via solar PV (80-500Vdc input range, max 32A current), utility, or oil generator, adapting to diverse energy sources.
• Dual Pure Sine Wave Output: Delivers stable 220/230VAC±3% power (THDv ≤3%) to protect sensitive electronics, with independent main/second load cut-off/recovery settings.
• Powerful Scalability: Supports single-phase/three-phase parallel operation of up to 16 units, expanding capacity to meet large energy demands.
• Dual Operation Modes: Works with or without batteries; sleep mode triggers automatically under low power output or low battery voltage to save energy.
• Smart Monitoring & Data Tracking: Isolated RS485 interface connects to Bluetooth/WiFi/4G for remote control; optional high-resolution color LCD; stores 25,000 historical data records for performance analysis.
• Comprehensive Safety: Battery/PV reverse polarity protection, full electronic safeguards, and IP20 enclosure with anti-dust kit ensure stable, safe operation.
• Seamless Switching: Inverter-to-utility (10ms) and utility-to-inverter (20ms, load >100W) switching for uninterrupted power.

Key Technical Specifications

• Power Range: 3.5KW–6KW models, optimized for residential and small commercial use.
• PV Input: MPPT voltage range 85-450Vdc, max input power up to 8000W, 1–2 MPPT trackers (varies by model), MPPT efficiency ≥99.5%.
• Output Parameters: 220/230VAC±3% output voltage; 50/60Hz±0.2% frequency; dual output (main/second load up to 6000W each).
• Battery Compatibility: 24VDC/48VDC rated voltage; independent BMS communication interface.
• Operating Conditions: -20℃~+50℃ working temperature (derating above 30℃); <4000m altitude (derating above 2000m); <95% relative humidity (non-condensing).
• Certifications: IEC 62109-1/2, IEC 61683, IEC 62368.

Versatile Application Scenarios

• Residential Use: Powers homes in off-grid or grid-unstable areas, provides emergency backup, and optimizes self-consumption of solar energy.
• Institutional Facilities: Supports schools, healthcare centers, and government buildings with reliable power for daily operations and critical equipment.
• Remote Locations: Ideal for cabins, rural properties, and field operations requiring self-sufficient energy systems.
• Small Commercial Spaces: Fits small shops, workshops, and local businesses needing flexible off-grid or backup power solutions.
