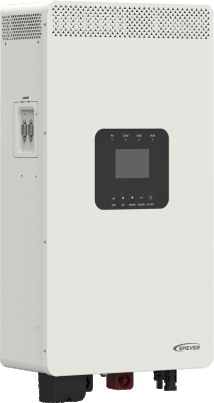

EPEVER HP-AHP20A Series: All-in-One High-Frequency Inverter/Charger (220-230VAC)

Subtitle: Multi-Source Charging, Scalable Power & Smart Energy Management

Core Product Advantages

• Multi-Energy Versatility: Charges from solar PV (dual inputs on select models for max utilization), grid, or diesel generators; advanced MPPT technology achieves >99.5% tracking efficiency to maximize solar harvest.
• Dual Operation Modes: Works with or without batteries, adapting to grid-tied, off-grid, or backup power needs for flexible deployment.
• Stable & Efficient Output: Pure sine wave output (THDu ≤3%) protects sensitive electronics; PFC technology reduces grid load, with max inverter efficiency up to 94% minimizing energy waste.
• Powerful Scalability: AC output supports parallel operation (12 units standard, up to 16 units max) with single-phase/three-phase settings, easily expanding capacity for larger energy demands.
• Smart Monitoring & Control: Large LCD display for real-time status checks; RS485 communication (optional 4G/WiFi/TCP modules) enables remote management; 25,000-record historical data storage (configurable 1–3600s intervals) for performance tracking.
• Reliable & Rugged: Wide operating temperature range (-20℃~+50℃) suits harsh environments; comprehensive electronic protections (overvoltage, overload, short circuit, etc.) and IP20 enclosure ensure long-term safety.
• Battery Compatibility: Works with lithium and lead-acid batteries, with adjustable charging/discharging current limits for flexible system matching.

Key Technical Specifications

• Battery Compatibility: Lithium/lead-acid batteries; 24VDC/48VDC rated voltage options (voltage range: 21.6–32.0VDC / 43.2–60.0VDC).
• PV Input: Max input voltage up to 500V; 1–2 MPPT trackers (dual inputs on HP5542-AH1050P20A); max input power up to 6000W.
• Inverter Output: Rated power 2000W–5500W; transient surge power up to 8500W (3S); 220/230VAC ±3% stable output.
• Fast Switching: Inverter-to-grid (10ms) and grid-to-inverter (20ms) switching for uninterrupted power during mode changes.
• Connectivity: RS485 port, isolated BMS interface (RJ45), dry contact interface; supports remote monitoring and BMS integration.

Versatile Application Scenarios

• Residential Energy Storage: Pair with solar panels and batteries to reduce grid reliance, optimize energy use, and lower electricity bills.
• Off-Grid Systems: Power remote homes, cabins, or field operations with solar+generator hybrid setups in areas with unstable grid access.
• Emergency Backup: Ensure critical loads (refrigeration, medical devices, lighting) stay powered during grid outages with fast mode switching.
• Small Commercial Use: Support shops, offices, or workshops with stable power supply, peak shaving, and load management.
• Hybrid Power Generation: Integrate solar, grid, and diesel generator sources for reliable, cost-effective energy in residential or small commercial settings.
