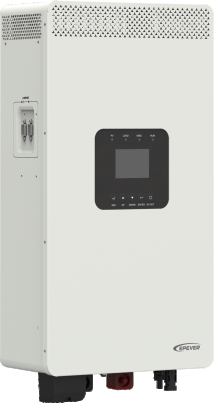

EPEVER HP-AHP20A Series: All-in-One High-Frequency Inverter/Charger (110-120VAC)

Subtitle: Multi-Source Charging, Efficient Conversion & Flexible Power Management

Core Product Advantages

• Multi-Energy Charging Versatility: Powers up via solar PV (dual inputs for max utilization), grid, or diesel generator; advanced MPPT technology achieves >99.5% tracking efficiency to maximize solar harvest.
• Dual Operation Modes: Works seamlessly with or without batteries, adapting to diverse energy configurations and ensuring uninterrupted power supply.
• High Efficiency & Stable Output: Pure sine wave output (THDu ≤3%) protects sensitive electronics; PFC technology reduces grid load, while max inverter efficiency up to 94% minimizes energy waste.
• Flexible Scalability: AC output supports parallel operation (single-phase/three-phase settings) for expanded capacity; adjustable grid charging current enables customized power configuration.
• Smart Monitoring & Control: Large LCD display for real-time status checks; RS485 communication (optional 4G/WiFi/TCP modules) enables remote management; optional 25,000-record historical data storage.
• Reliable & Rugged: Wide operating temperature range (-20℃~+50℃) suits harsh environments; comprehensive protections (overvoltage, overload, short circuit, etc.) and IP20 enclosure ensure long-term safety.

Key Technical Specifications

• Battery Compatibility: Compatible with lithium and lead-acid batteries; 24VDC/48VDC rated voltage options.
• PV Input: Dual MPPT trackers, max input power up to 8000W, MPPT voltage range 65-240V, dual PV inputs for enhanced utilization.
• Inverter Output: Rated power 2000W-6000W, transient surge power up to 8500W (3S); 110/120VAC ±3% stable output.
• Fast Switching Speed: Inverter-to-grid (10ms) and grid-to-inverter (20ms) switching for uninterrupted power during mode changes.
• Connectivity: RS485 port, BMS interface (RJ45), dry contact interface; supports remote monitoring and BMS integration.

Versatile Application Scenarios

• Residential Energy Storage: Pair with solar panels and batteries to reduce grid reliance, optimize energy use, and lower electricity bills.
• Off-Grid Systems: Power remote homes, cabins, or field operations with solar+generator hybrid setups.
• Emergency Backup: Ensure critical loads (refrigeration, medical devices) stay powered during grid outages with fast mode switching.
• Small Commercial Use: Support shops, offices, or workshops with stable power supply and peak shaving capabilities.
• Hybrid Power Generation: Integrate solar, grid, and diesel sources for reliable, cost-effective energy solutions in areas with unstable grid access.
