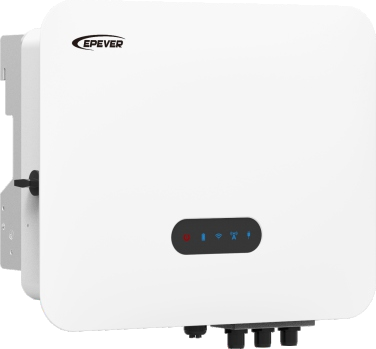

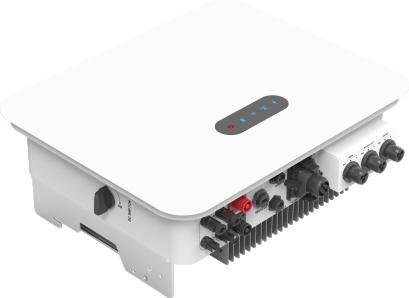

EPEVER ELS Series: Single-Phase Residential Hybrid Inverter

Subtitle: High-Efficiency, Smart & Reliable — Power Your Home with Flexible Energy Management

Core Product Advantages

• Industry-Leading Efficiency: Max MPPT tracking efficiency up to 99.9%, PV conversion efficiency 98.0%, and battery charge/discharge efficiency 94.6%; 150% PV oversizing capability maximizes solar energy harvest.
• Powerful & Flexible Performance: 1.5x rated power overload for 60 seconds, 120A max continuous charge/discharge current; supports up to 9 units in parallel for expanded capacity.
• Seamless Uninterrupted Power: UPS-level switching (<10ms) ensures no downtime when switching between grid, battery, or backup power.
• Smart & User-Friendly: Dedicated interface for generator connection/AC coupling; LED/LCD display + smart APP for real-time monitoring and easy operation; natural cooling design (maintenance-free, ultra-quiet <25dB).
• Reliable & Safe: IP65 waterproof/dustproof protection; comprehensive safeguards (anti-islanding, PV reverse polarity, residual current detection, etc.); optional RSD and AFCI modules for enhanced safety.
• Wide Compatibility: Works with lithium and lead-acid batteries; 48V rated voltage, 3-stage charging or BMS command support for flexible system integration.

Key Technical Specifications

• PV Input: MPPT voltage range 100–550V, max input voltage 580V, 1–2 MPPT trackers (varies by model).
• Power Range: Rated off-grid power 3000W–6000W, peak power 1.5x rated for 60s; on-grid max apparent power 3300VA–6600VA.
• Efficiency: European efficiency up to 97.8%, max discharging efficiency 97.3%.
• Operating Conditions: -30℃~+60℃ temperature range, 4000m max altitude (derating above 2000m), 0%~95% relative humidity.
• Connectivity: RS485/CAN communication with BMS; RS485 for meter connection; external WiFi/Bluetooth for portal access.
• Design: Wall-mounted, dimensions 222.5×558.1×455.1mm, net weight 28.1kg.

Versatile Application Scenarios

• Residential Solar Storage: Store surplus solar energy for daily use, export excess power to the grid, and optimize electricity tariffs.
• Emergency Backup Power: Ensure critical loads (refrigeration, medical devices, lighting) stay powered during grid outages with fast switching.
• Off-Grid & Rural Homes: Provide reliable power for homes without stable grid access, paired with solar panels or generators.
• Small Commercial Use: Support small shops, offices, or workshops with peak shaving, load management, and backup power.
• Hybrid Energy Systems: Integrate solar, grid, and generator sources for cost-effective, sustainable power solutions.
